Light Hydrocarbon Recovery Device

Product

Product introduction

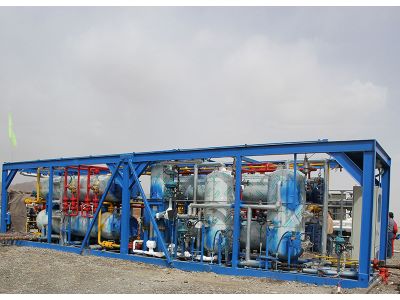

Light hydrocarbon recovery device collects the associated gas produced in gas or oil field,then liquefy to LNG, stable light hydrocarbon and dry gas. Recovery of natural gas liquids (NGL) from natural gas is quite common in the natural gas processing and can creat great economic values in market. It is mounted on one or more 7*2.3m skids. The recovery efficiency depends on the technology in different components. Recovery rate of propane refrigeration is approximate 45~80%, refrigerated oil absorption 80~92%, PSA 85~93%.

Excellent performance

Collect the associated gas for maximum recovery, save the energy and resource

The recovery liquid hydrocarbons can be used directly as fuel and chemical raw materials or further separated into ethane,propane,butane or mixture of propane and butane(LPG),light oil,etc.

Reduce the air pollution caused by the emission of greenhouse gas eg. Carbon dioxide

Improve the operating circumstance during production and prevent the potential accident

produce transportable gas

"Dew Point Control,to meet sales-gas specifications"

Technical Parameters

Handling capacity per day:1-10*10000m³/d(0.35-3.53MMSCFD)

Item	Component description	Transportain size (LWH)(m)	Weight(t)	Remark

M101	Skid mounted compressor	Determined by gas recycling requirements		Customized

M102	Skid mounted desulfurization Dehydration device	3.5×2.3×2.7	6.8
M103		6.8×2.2×2.5	8.5
M104	Skid mounted choke manifold jacket heater	2.5×2.5×2.7	15.8
M105		7.2×2.3×2.7	8.5
M106	Skid mounted light hydrocarbon recovery device	Depend on the hydrocarbon recovery requirements	15-20	Without ice machine
