Loading arm

Product

Product introduction

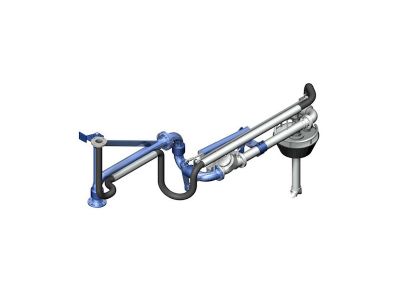

Loading arm is a kind of equipment which is used to transport liquid medium between tankers and trestle storage and transportation lines and made by rotary joint which is flexible in rotation and good in sealing and pipelines.

Excellent performance

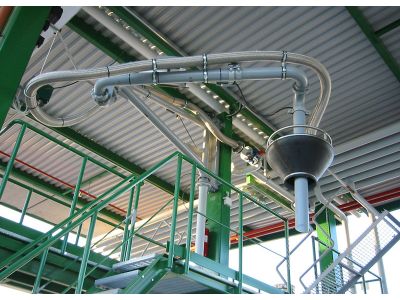

1. Used for loading operation of tank car top open state and closed state or bottom closed state.

2. In the loading process, moving with the tank car in the normal range;

3. Can be manual, pneumatic or hydraulic driven;

4. Spring balance system can be balanced in the incident, flexible alignment operation;

5. A variety of ancillary facilities can be selected to achieve safe operation and environmental protection;

Technical Parameters

Nominal diameter	DN25~DN200 (1"~8")
Design tempreture	-196℃ ~ + 250℃
Design pressure	-0.06MPa ~ 5.0 MPa
Turn horizontally	0°～360°
Lift angle	-5°～60°
Pipe material	Carbon steel, stainless steel, aluminum and aluminum alloy, fiberglass, lining PTFE, etc
Suitable for medium	Oil, chemicals, acid, alkali, liquefied gas, liquid asphalt, water, steam, etc
