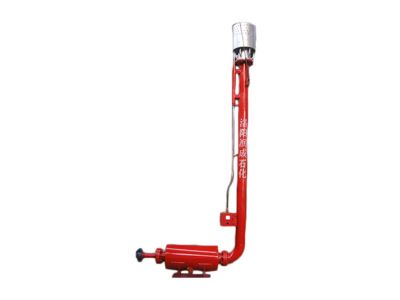

Flare Ignition Device

Model:BD-10F

High pressure electronic ignition
Reduce environmental impact and ensure safe
Equipped together with mud gas separator
Product introduction

Flare ignition device is equipped to burn on the oil and natural gas drilling field in case of flammable and poisonous gas overflow while drilling and eliminate the harm to the environment and ensure safety.The ignition is controled by a small control panel installed on the vertical pipe, and at the foot of the device, there is a small tank to store natural gas for igniton. Generally, the flare ignition device matches another device which is mud gas separator. They are used together to process the combustible gas at the drilling site.The gas and mud mixture from the drilling gets into the mud gas seperator first, then the gas in the mud will be removed out and guided to the flare igniton device by a hose. It is generally installed at least 50 meters away from the drilling site.

Excellent performance
High pressure electronic ignition
Reduce environmental impact and ensure safe
Equipped together with mud gas separator
Compiance with API 521
Technical Parameters
1)Fuel types: oil and gas
2)Gas pressure: ≤0.1MPa or less
3)Gas inlet test pressure: 0.4MPa
4)Largest gas consumption: 1000m³/h
5)Power source: AC220V. 50HZ 3A (Max)
6)Electric ignition voltage: 10KV (Max)
7)Electric ignition energy storage: 150MJ
8)Spark frequency: ≥5HZ
9)Flame detector response time: ≤5S
10)Working temperature: the head of the ignition device(flame outlet within the range of 2m, max 600℃);the other side -25℃~60℃
11)Electrical insulation performance:≥2MΩ(normal condition, the insulation resistance between the ignition device shell and the power input) test conditions: AC500V 50HZ
