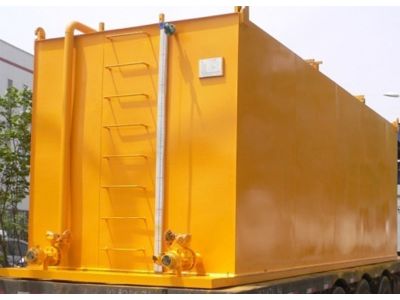

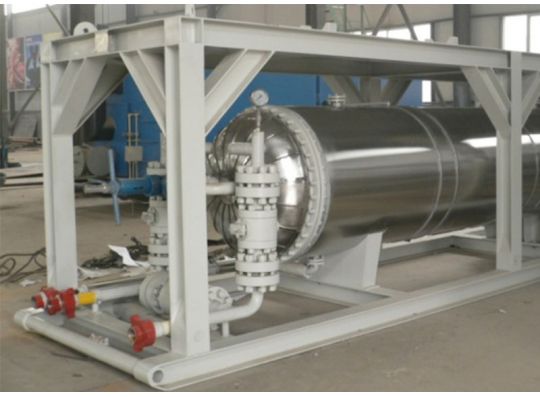

Metering Tank

Model:MT16

Measure low liquid flow rates from a separator.
Calibrate metering devices on the separator oil lines.
Measure a large volume of oil at atmospheric pressure
Product introduction

Metering tank, also known as dump tank or measuring tank,is used for metering crude oil after separation and calibrating metering devices like flow gauges on the separator oil lines in a testing system.It is a nonpressurized vessel, and can also be used for temporarily storing the oil.Since the measuring tank is attached a crude-oil transfer pump, it is convenient to load and transport oil and water.Safety features include flame arrestors on each vent from the tank, a grounding strap, and a shearing roof that opens at 3.45 kPa [0.5 psi] burst pressure in the event the vessel is overpressured accidentally. The grounding strap attached to the tank prevents a static charge buildup.The metering tank is frequently part of the standard equipment for well testing. However, it cannot be used when H2S is present in the effluent because the gas released from the tank is vented into the atmosphere, and that would be hazardous to personnel in the area.

Excellent performance
Measure low liquid flow rates from a separator.
Calibrate metering devices on the separator oil lines.
Measure a large volume of oil at atmospheric pressure
Safety guarantee: Flame arrestors on each gas vent line;Overpressure shearing roof;Grounding strap
Sampling points and pressure and temperature ports
Sight-glass level on each tank compartment
Codes: ANSI/ASME B31.3
Technical Parameters
Capacity
/bbls(m3)
Working pressure
/psi(bar)
Manhole size
/inches(mm)
Inlet/outlet
thread type
Net weight
/lbs(kg)
Dimension
(H×L×W)/ft(m)
Feature Sampling point Design basic and
working environment
50
(8)
Atmosphere 10
(254)
3" fig 2602F
3" fig 602M
4410
(2000)
9×7×7
(2.7×2.1×2.1)

Tank top with a manhole and explosion-proof oil hole,equipped

 with a manhole at the bottom

 is convenient to clean the internal of the tank,

and there are also mounted breather valve and

 flame arrester at the top of tank.

1/2" one each side ANSI B31.3
2×50
(16)
Atmosphere  -18
(457)
3" fig 2602F
3" fig 602M
8350
(3787)
8×14.5×8
(2.4×4.4×2.4)

Double rooms, with 6" flame arrester,flame

arrester flanges are ANSI 150RF stainless

 steel flanges,with observation hole,the oil gauging hole

1/2" one each side ASME VIII
 Div.1.
ANSI
B31.1
NACE
MR-01-75
