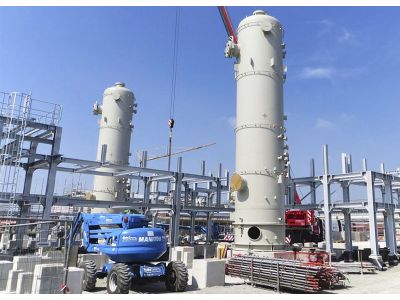

Activated carbon organic waste gas adsorption tower

Product

Product introduction

Activated carbon organic waste gas adsorption tower, which is well-designed, equipped with ancillary equipment, and with strong adsorption capacity and high purification efficiency. By utilizing the surface force of the high-performance activated carbon adsorbent solid, the adsorbate of the organic exhaust molecules can be attracted to the surface of the adsorbent to adsorb the exhaust gas of organic solvents such as benzene, alcohol, ketone, ester, gasoline,etc. It is more suitable for treatment of large amount of low-concentration organic waste gas, which can effectively purify the environment, eliminate pollution and improve working conditions to ensure that workers are in good health, and can recover organic solvents and reduce production costs.

Excellent performance

1. High adsorption efficiency, strong adsorption ability;

2. Can handle a variety of mixed organic waste gas at the same time;

3. Compact structure, cover a small area, easy maintenance and management, low operating costs;

4. Adopting automatic control operation design, easy and safe operation;

5. Fully closed type, can be used both indoor and outdoor.

6. Suitable for low concentrations of high winds or high concentrations of intermittent emissions of operating environment.

Technical Parameters

Model	Air handling capacity	Length（mm）	Width（mm）	Height（mm）	Inlet（mm）	Outlet（mm）
Model	（m3/min）	Length（mm）	Width（mm）	Height（mm）	Inlet（mm）	Outlet（mm）
HXF-60	60	2000	1100	1200	320	320
HXF-80	80	2500	1200	1200	400	400
HXF-100	100	2600	1300	1500	450	450
HXF-150	150	3000	1500	1600	560	560
HXF-180	180	3300	1800	1800	630	630
HXF-200	200	3100	2200	1300	630	630
HXF-250	250	3300	2300	1600	700	700
HXF-300	300	3600	2400	1800	800	800
HXF-350	350	3900	2500	1800	900	900
HXF-450	450	4200	2600	2200	1000	1000
HXF-600	600	4600	2700	2400	1120	1120
HXF-700	700	5200	2800	2400	1250	1250
HXF-800	800	5500	3000	2600	1400	1400
